Product Description

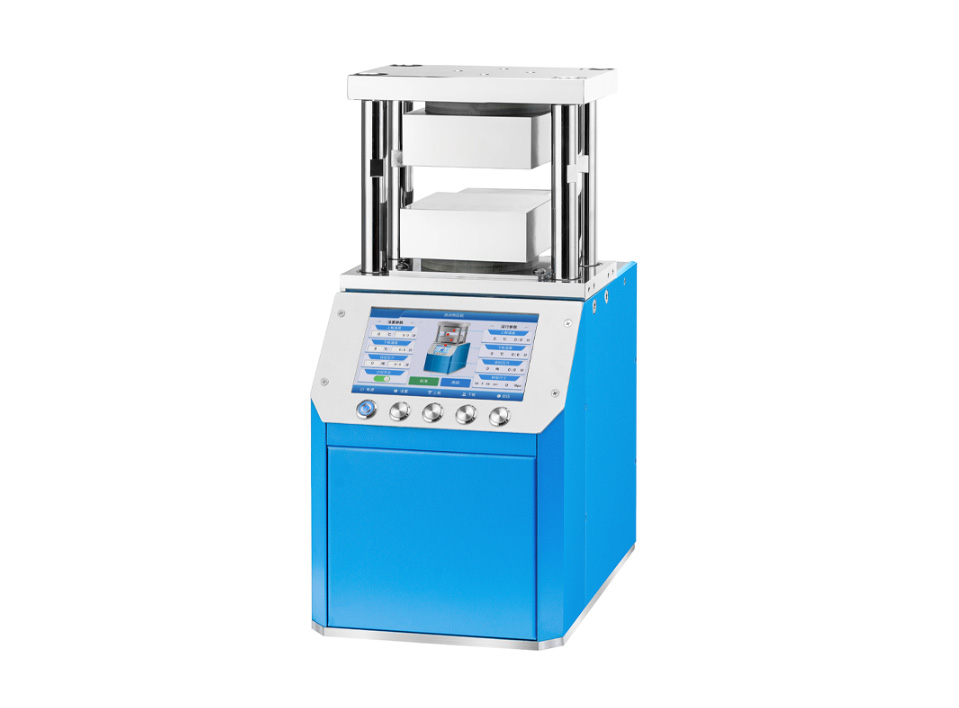

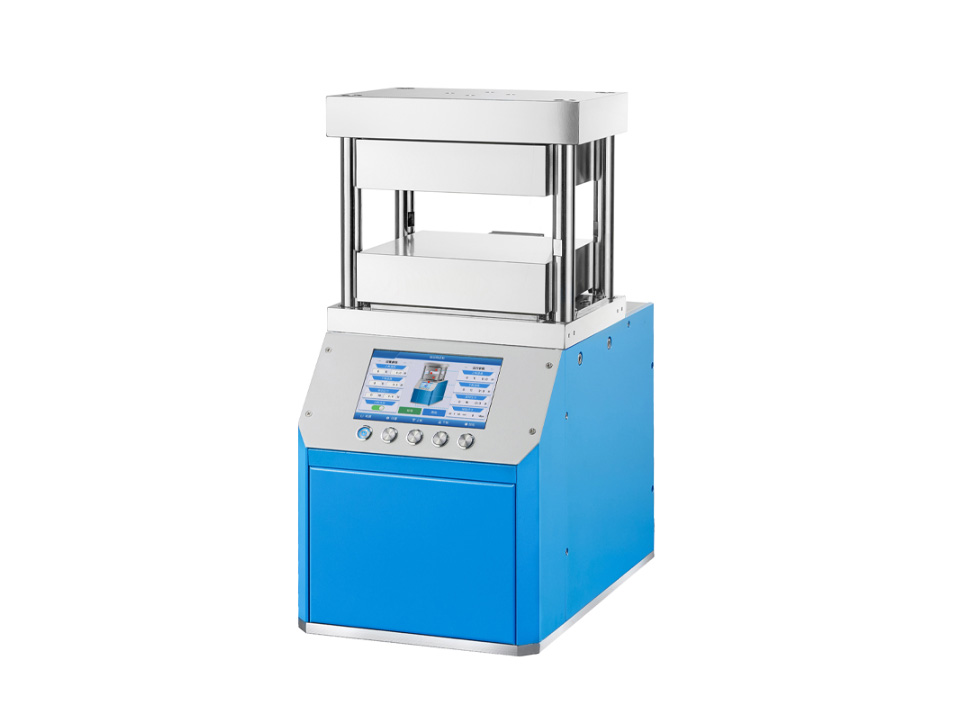

The PP-600 serail heating press is a programmable control auto heating press with double heating plate.It is designed for sample heating pressing, has 300 degree and 500 degree for option. The heating plate has 120*120mm; 180*180mm; 200*200mm; 300*300mm for option
Technical Parameter
Model No. | PP-600C | PP-600D1 | PP-600D2 |
Pressure Range | 0~5T | 0~25T | 0~25T |
| Pressure accuracy | 0.1T | ||
| Pressing control | 20steps program control | ||
| Max holding time | 32768 each step | ||
| Temperature range | 300℃ or 500 ℃ option | ||
| Temperature accuracy | 0.1℃ | ||
| Heating plate size | 120*120mm | 180*180mm | 200*200mm |
| Cooling method | Water cooling | ||
| Power supply | AC110V/220V as request | ||
| Dimension | 182*306*460mm | 300*390*560mm | 300*390*560mm |
