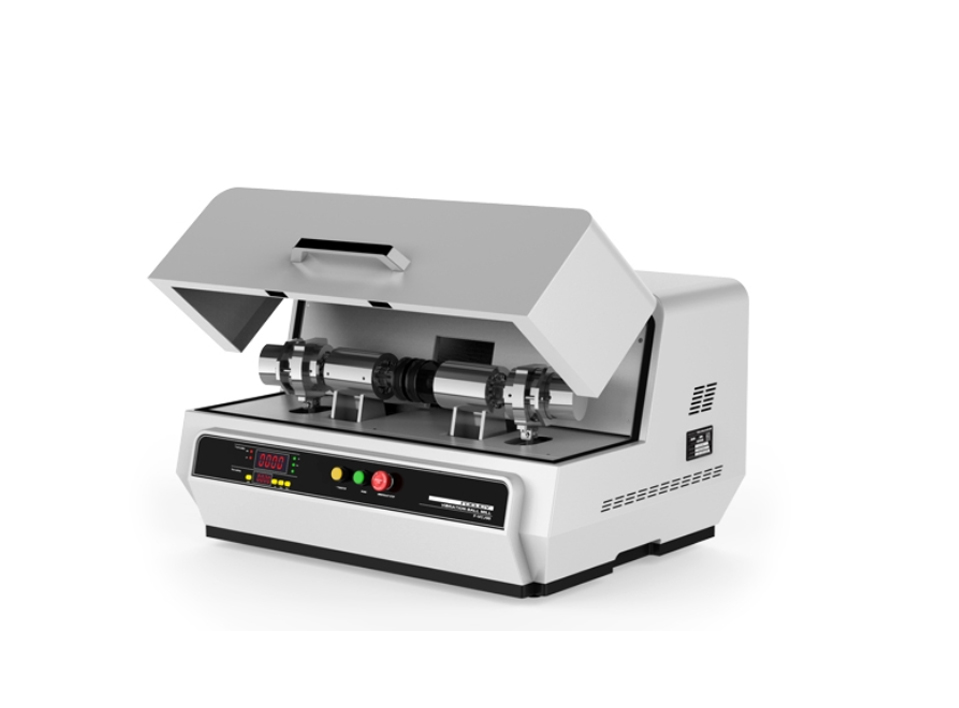

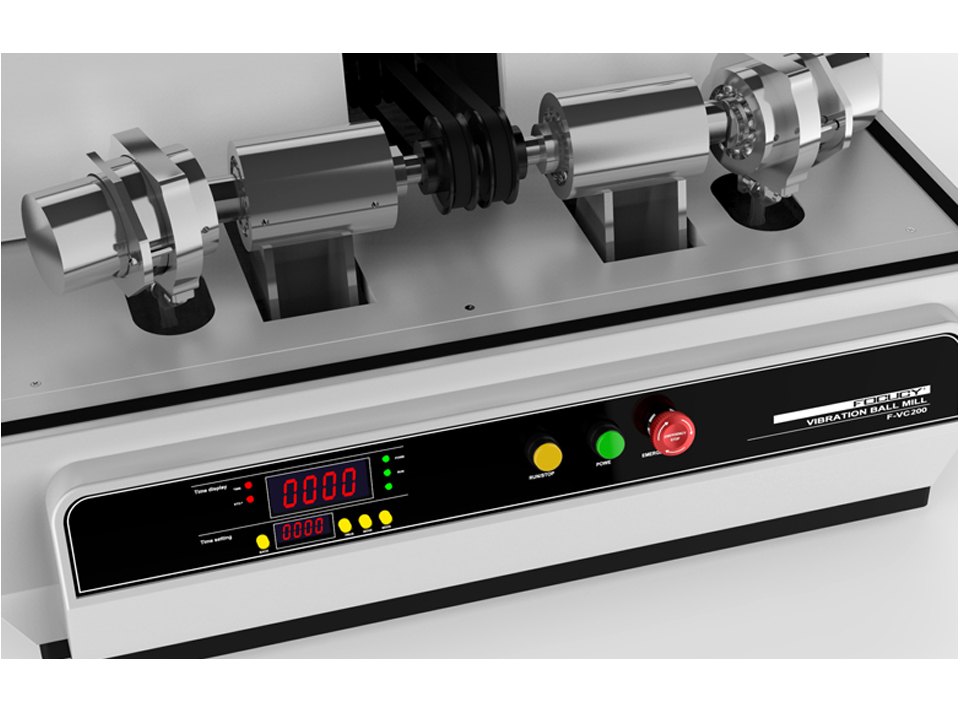

F-VC200 Horizontal high-energy Vibration Ball Mill

Product Description

The high-energy vibration ball mill is a small desktop laboratory grinding instrument that uses a high frequency three-dimensional vibration of 1700r/min to grind or mix samples. It is used in two 50ml or 80ml ball milling tanks with a minimum processing capacity of 1g. It is used to test the treatment of small or micro samples. The processing efficiency of the F-VC200 high-energy vibration ball mill is 3-5 times that of the planetary ball mill, and it can be used dry Wet ball milling or mixing various types of solids, suspensions, and pastes with different particle sizes and materials can be used, and vacuum ball milling tanks can also be configured to achieve vacuum or inert gas protection grinding;

Technical Parameter

Model No.F-VC200
Grinding materialWet/dry
Max input material< 1 mm
Output Material range0.1-20 um
Vibration speed1700r/min
Material grinding jarTungsten carbide | zirconia | stainless steel | polytetrafluoroethylene
Grinding jar capacityMax 80ml*2pcs
Power Supply
AC220V/50Hz
Dimension620*320*268mm
