Product Description

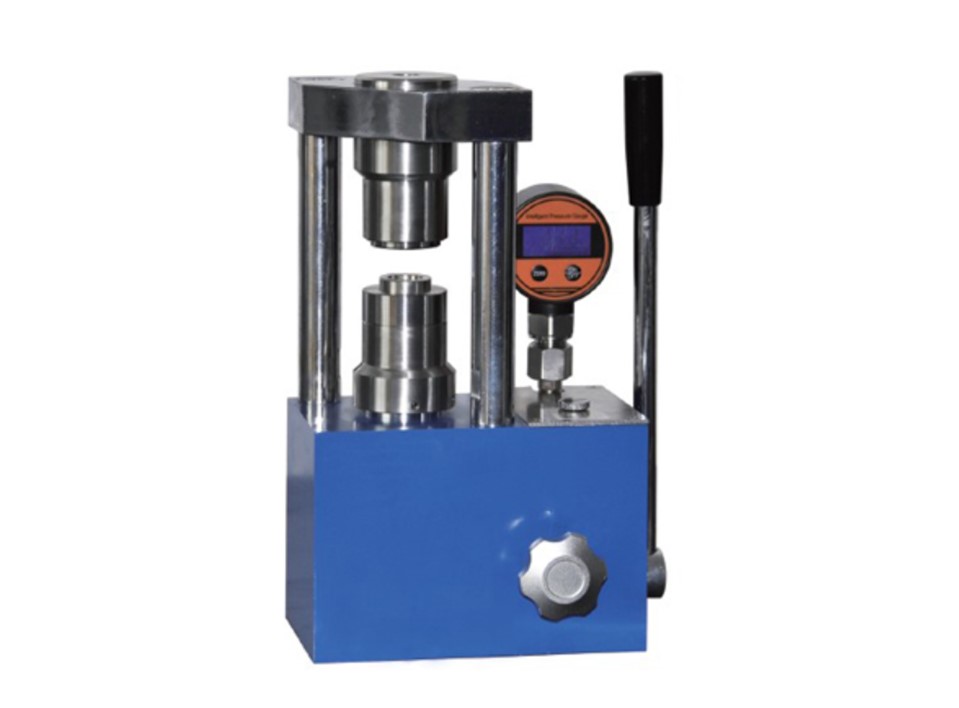

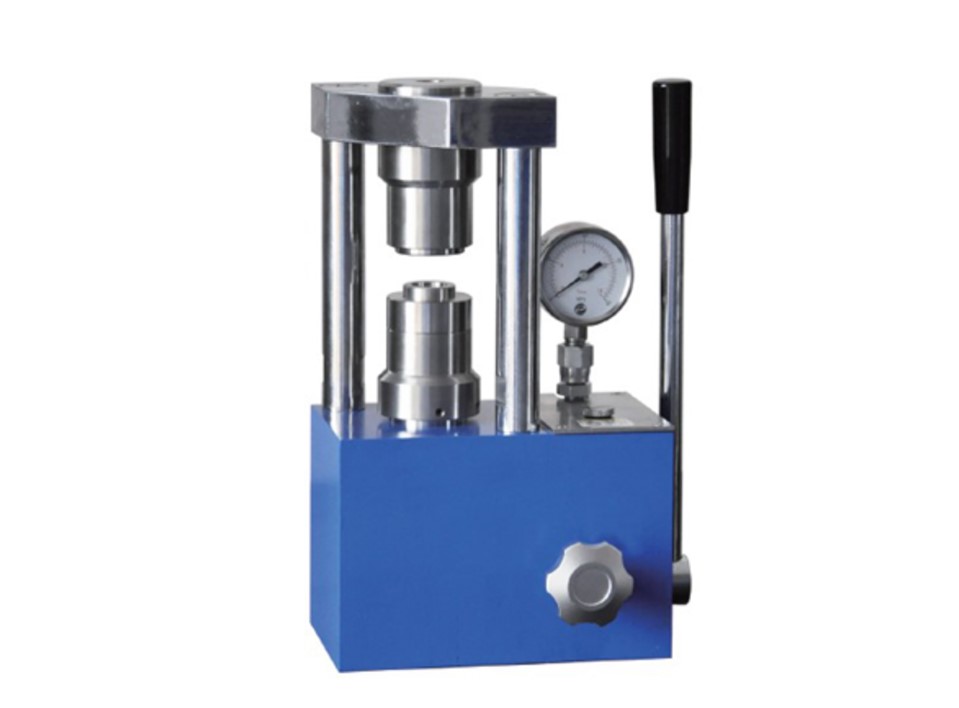

PC-5NS is a new design coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. We don't suggest to use the machine inside glovebox.
Technical Parameter
Model No. | PC-5NS |
Pressure Range | 0~5T (0~31MPa) |
Piston diameter | Φ45mm |
Press Structure | All in one structure |
Pressure gauge | Digital Pressure Gauge |
| Standard mold | CR20 sealing mold |
| Sealing mold | CR16,CR20,CR24,CR30 for option |
| Sealing pressure | 0.8~1.2Ton |
| Crimpering mold | CR16,CR20,CR24,CR30 for option |
| Crimpering pressure | <0.4Ton |
| Machine size | 225*155*320mm |
| Gross Weight | 28Kg |
